Categories: Vision Distribution
Vision distribution, conversion and manipulation chances are we have the right video product for your next hire. 3G SDI, HDMI, HDBaseT, Component, Composite, RGB or any other flavour you may have we have a vast stock of production to route your signals for what ever the application.

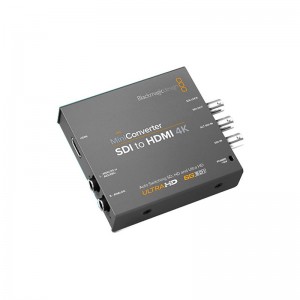

SDI to HDMI Converter
Mini converter to convert SDI Signal to HDMI Signal
Now it’s possible to convert from SDI to HDMI in all SD and HD formats up to 1080p60. Audio is embedded into the HDMI output and output separately as balanced analog or AES/EBU audio. Mini Converter SDI to HDMI is perfect for using HDMI televisions and video projectors as SDI monitors for all SD and HD formats.

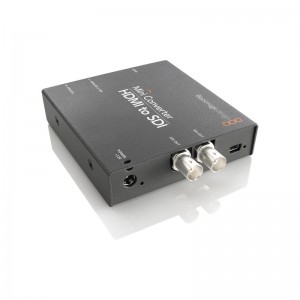

HDMI to SDI Converter
Mini converter to convert HDMI Signal to SDI Signal
The ideal solution for converting HDMI to SDI in all SD and HD formats up to 1080p60. Audio can be embedded from HDMI, balanced analog or AES/EBU inputs. Mini Converter HDMI to SDI is ideal for adding an SD or HD-SDI output to computers and cameras that have HDMI connections.
Hire one today!

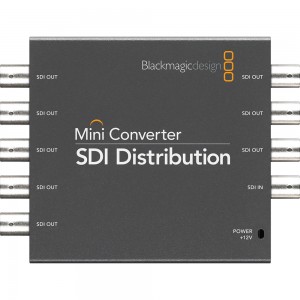

Mini converter one SDI Input to eight outputs
Now you can distribute a single SD or HD-SDI connection to up to 8 different SDI outputs at the same time! You get a true 3G-SDI design with fully re-clocked outputs and automatic switching between all SD and HD formats up to 1080p60. You also get support for all ASI, ancillary and embedded audio formats. Mini Converter SDI Distribution is the perfect SD/HD SDI distribution converter.

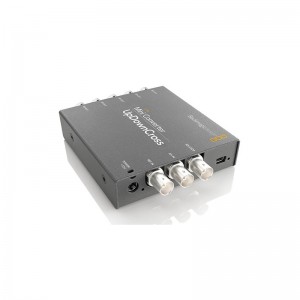

SDI Up Down Cross
Mini converter to convert SDI Signal, provides an easy way to convert between SD and HD video formats as it includes a full up, down and cross conversion, as well as full NTSC/PAL standards conversion.
UpDownCross converter includes both up, down and cross conversion as well as a 4 field standards converter! Fantastic for placement on deck SDI inputs, so you always get NTSC or PAL into the deck. Use the cross converter to convert 720p to 1080i or 1080i to 720p so you can edit once and master in SD, 720p and 1080i video!

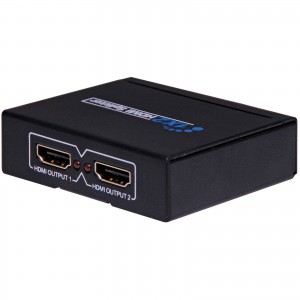

One HDMI input to Two Outputs
1×2 HDMI Distribution Amplifier supporting HD signals. 2 zones, advanced EDID management, and easy installation.

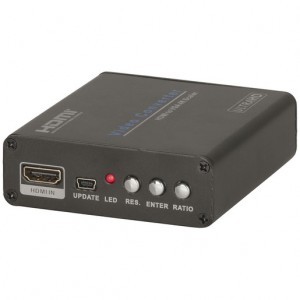

HDMI to VGA Scaler
Scan converts HD HDMI input to RGB VGA output at 4:3 or 16:9 Ratios
Convert digital 4K UHD HDMI video and audio signal from your HDMI Source or computer to standard VGA and RCA stereo audio signal for connection with your older style CRT/LED/LED monitors or projectors.
• No installation driver required
• Flexible and portable
• Plug and play
• High quality scaling technology for input resolutions
• Multiple output resolution setting in OSD menu
• Compatible with HDMI 1.4
• Support HDMI input resolution up to 4K x 2K@30Hz

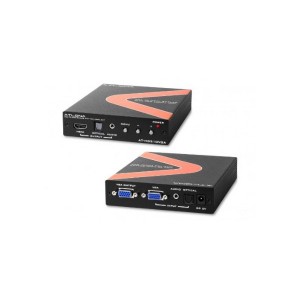

VGA to HDMI Scaler
Upscales RGB VGA input to HD HDMI Output
Designed to take video signal from PC or Laptop and upscale it to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p or WUXGA (1920×1200). All adjustments are done on the actual scaler, which makes it very simple to use and requires no technical knowledge. Besides video upscaling, the Scaler can also converts digital/analog audio signal to digital/analog format, then output to HDMI combining with the video. The Atlona converter has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.
- Scaler is capable of accepting all PC resolutions up to 1920×1200 and is also capable of scaling from 1080p to 1920×1200
- Automatically detect the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected.
- Provides output picture adjustment on contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size.
- Supports high resolution output :
PC: VGA, SVGA, XGA, SXGA, UXGA, WXGA, WSXGA, WUXGA.SD/HD: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p (30/50/60)
- Supports analog stereo and digital audio (optical) then outputs the audio to HDMI, TOSLink and mini stereo jack simultaneously.

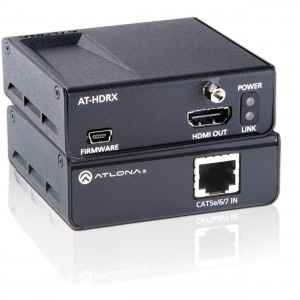

HDMI via HDBase T Kits
Transmitter & Reciever Kits linked with Cat 6 Cable to extend HDMI up to 70m
Long distance HDMI extension
- Sends / Receives HDMI signals up to 230 ft (70 m) @ 1080P and 130 ft (40 m) @ 4K/UHD using CAT6a/7 cable
